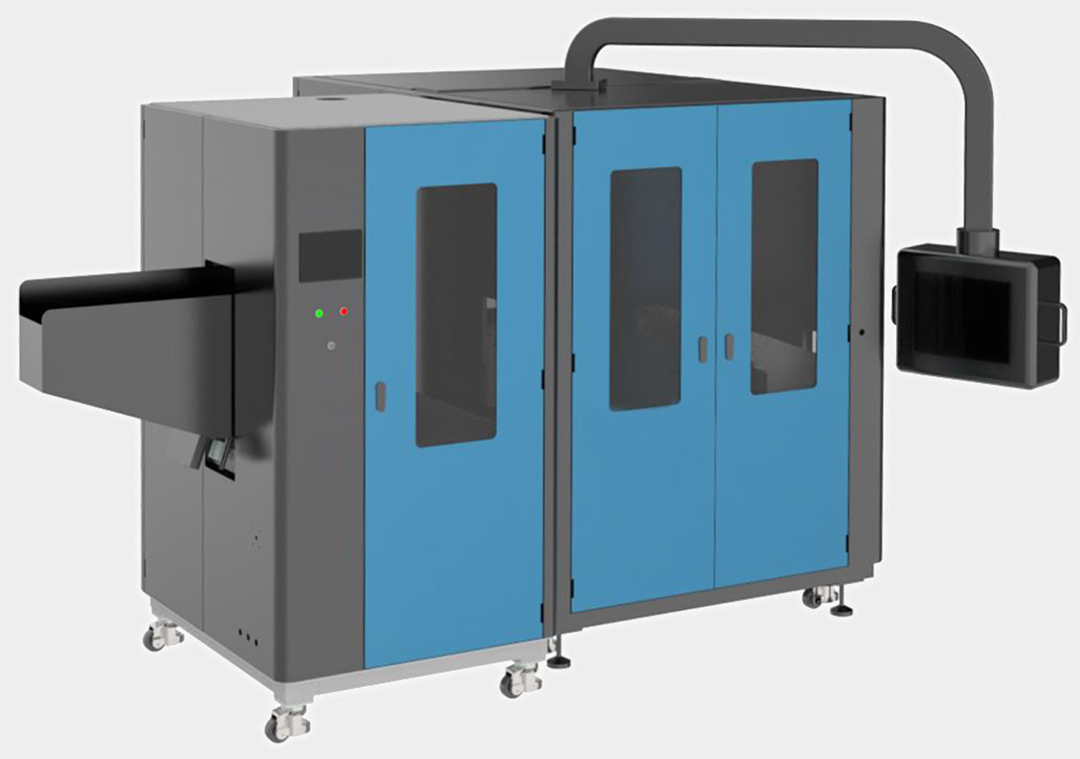

Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson-I1600-Series |
 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series |
Innovative Rotary 2 X 4 Workstations An Efficient Way for Tube Decoration A Photorealistic Tube Decoration Automatic Loading & Unloading Increase of Production Output Quick Changeover Tooling Feature Integrated Flame/Corona Pre-Treatment  |

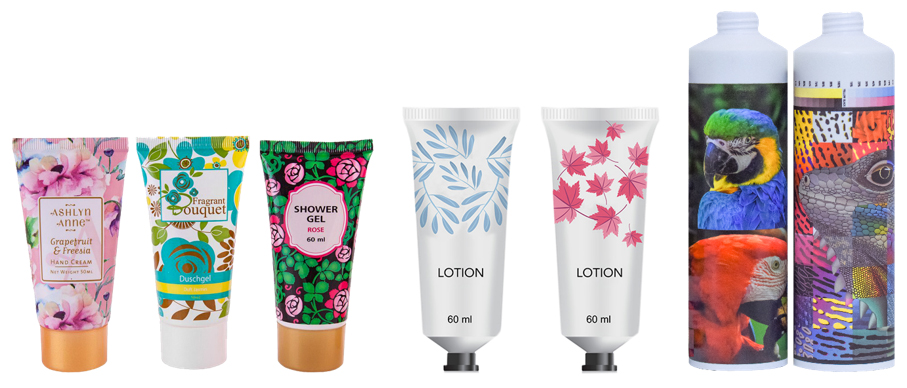

 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series Digital Inkjet Printed Samples |
Applications: Soft plastic tubes as cosmetic packing, medical products packing, food & chemical packing. |
| Features and Advantages | ||
 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series High Performance RICOH Gen6 Print Heads |

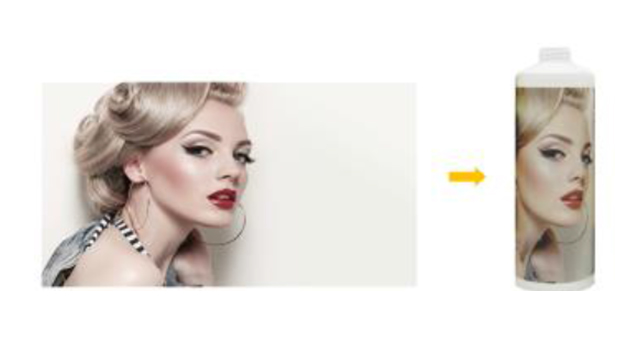

 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series Perfect 360° Seamless Spinning Print |
 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series High Drop Printing on Irregular Surface |
| The EPSON I1600-U1 print head provides good performance and stability to meet the production requirements of high resolution, durability, and fast printing, achieving high quality and efficient spiral printing. | The Spiral Printing Pass Method and best print head technology ensure to deliver ink droplets precisely along the surface while it is spinning at a high rate, and 360° full-coverage printing without gaps and overlaps. |

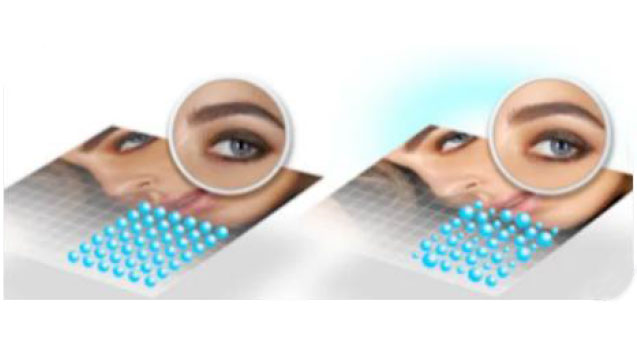

The EPSON I1600-U1 print head delivers ink ejection of up to 4 colors realize with 600 dpi/color high-density resolution and supports multiple grayscale levels, ensuring exceptional print precision. |

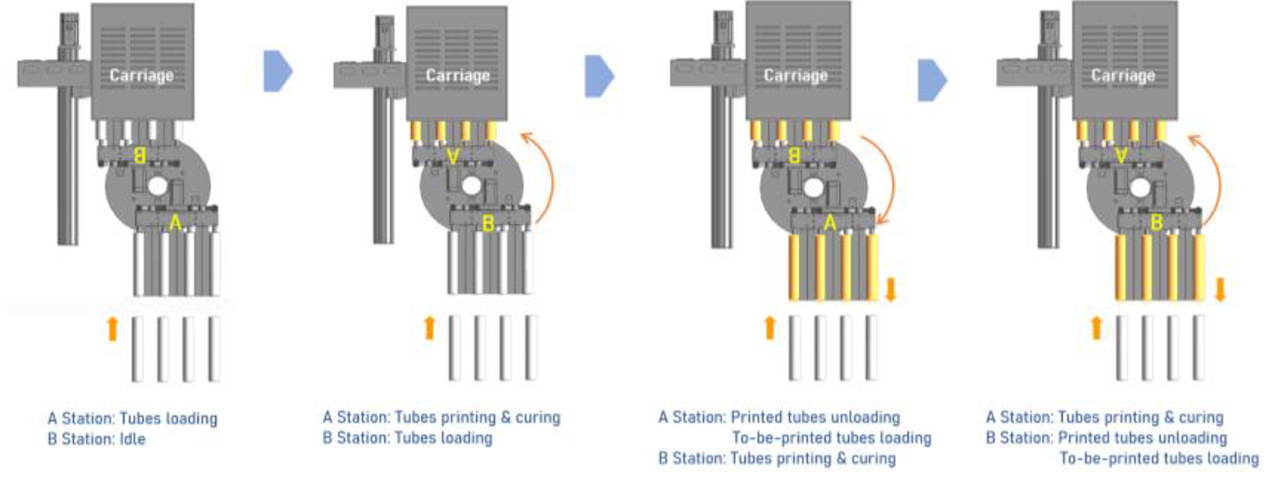

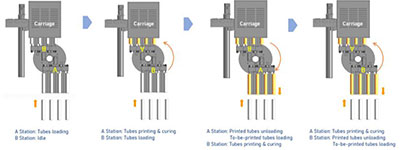

 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series Innovative Rotary 2 X 4 Workstation Printing |

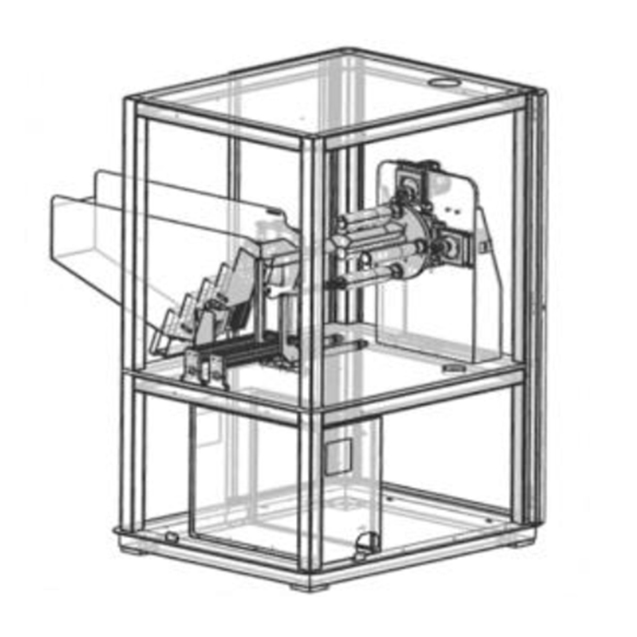

 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series Integrated Flame/Corona Pre-Treatment |
|
| The structure of 2x4 workstations achieves the loading, printing, curing and unloading of four tubes in groups alternatively. 2x4 workstations rotate in and out alternately for continuous printing, optimizing production workflows, and resulting in the most effective industrial inkjet printing. | The ECO-6 is equipped with dual operation stations that can print and cure simultaneously, improving production efficiency. The two tooling fixtures can be tilted max. 15 degree according to the shape of the product for taper printing. | |
 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series Professional RIP Printer Control Software |

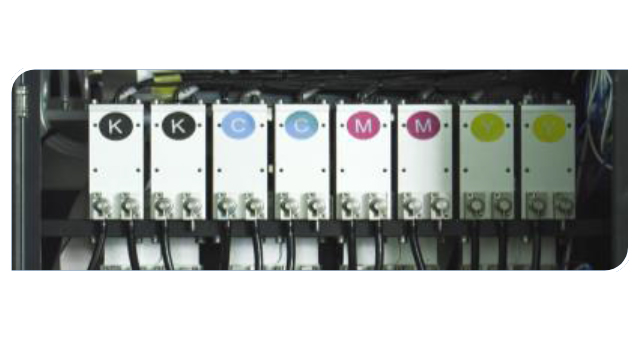

 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series Negative Pressure Ink Supply System |

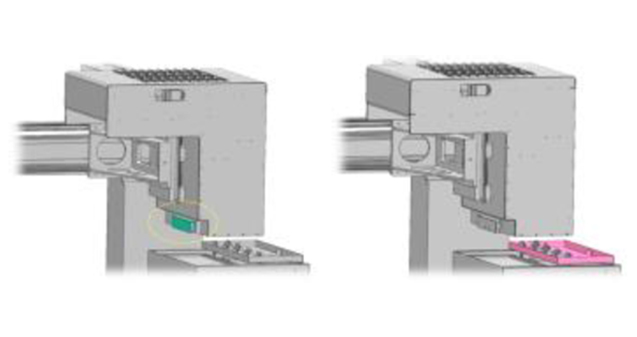

 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series Print Head Maintenance System Automatic Print Head Protection System |
| FlexiPRINT is a satisfied solution with a powerful color management engine for image editing, calibration and print profiling. Printer Control Software has a user-friendly interface and is straight forward to use, offering advanced technology for image processing. |
The system creates a low-pressure environment within the ink cartridge, facilitating consistent ink flow and distribution for accurate and uniform printing. | The system allows automatic wiping, and accurately controls the position of capping, intelligently protect the print head and prolongs life. |

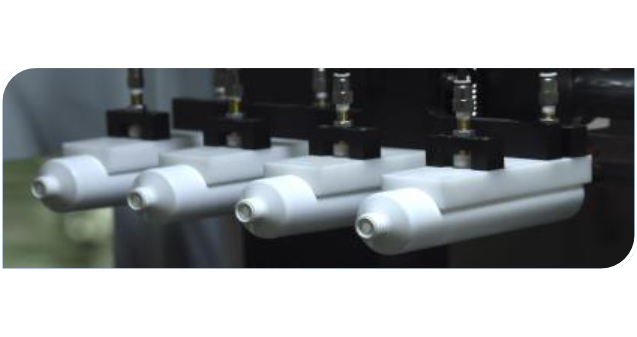

 Rotary Tube UV Digital Inkjet Printer DIGITUBE Epson I1600 Series Automatic Loading and Unloading System |
||
| The automatic loading and unloading system greatly improves efficiency and saves manpower. | ||
| Technical Specification | ||
| ITEM | DIGITUBE | Easy Fixture Changeover and Image Setup All Servo-Driven Digital Print System LED UV Curing system Automatic Z-Axis Height Detecting White Ink Circulation System |
| Print Head | Epson I1600 Industrial Piezo Print Head x 8 | |
| Print Technology | Piezoelectric Inkjet, Variable Dot Printing, Grayscale Technology | |
| Droplet Volume | 3.8-12pl Variable | |
| Ink Configuration | W + CMYK / CMYK + V | |
| Ink Type | Flexible UV Curable Ink | |
| Ink Cartridge Capacity | 3 Liters | |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply | |
| Print Resolution | 600 x 2,400 dpi max | |
| Object Handling | 2×4 Workstations; Automatic Loading & Unloading | |
| Print Speed | Up to 40 pcs/min | |

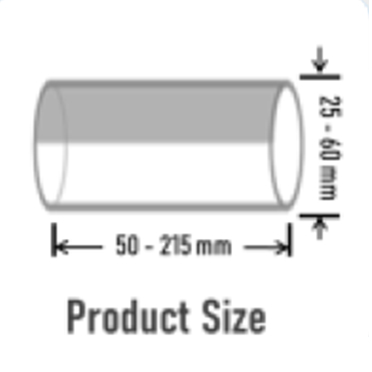

| Product Diameter | 25 - 60 mm | |
| Product Length | 50 - 215 mm | |
| RIP Software | FlexiPRINT | |
| Image Format | BMP, JPG/JPEG, TIFF, PDF, EPS, PNG, SVG | |
| Connectivity | Gigabit Ethernet Interface | |
| UV Method | LED-UV lamp x 4, with water cooling system | |
| Power Supply | Single-phase AC110/220V, 50/60Hz |
|
| Operational Environment | Temperature: 18–30℃. Humidity: 40–80% Rh (Non condensing) | |
| Dimensions (WxDxH) | 3,010 x 2,180 x 1,900 mm | |
| Approximate Weight Crated | 1,180 kgs | |
