Digital Inkjet Printers
Made in China
| RPM promotes top-grade Cylinder UV Digital Inkjet Printer ECO-6 made in China, such as Cylinder UV Digital Inkjet Printer, Single Pass UV Digital Inkjet Printer, Rotary Tube UV Digital Inkjet Printer, AI Scanning UV Conveyor Digital Inkjet Printer, plus 2-8 Colors Rotary Screen Printing & Hot Stamping Machine, etc. |
Cylinder UV Digital Inkjet Printer ECO-6 Epson-I1600-Series |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series |
Cylinder & Tapered Object Printing Dual Workstations Full CMYK+W+V Part Diameter 45-120 mm Print Length 50-240 mm Quick Changeover Tooling Feature Servo-Driven Operation  |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series W.CMYK.V |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Epson I1600 Print Head |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series 3.8-12pl Variable Droplet |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series HI-RES High Definition |

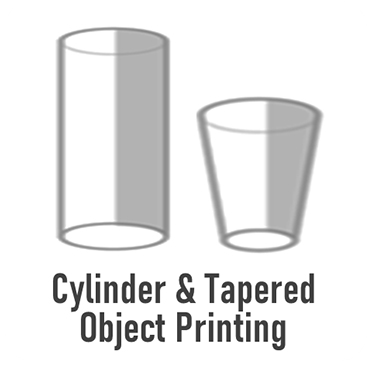

 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Cylinder & Tapered, Object Printing |

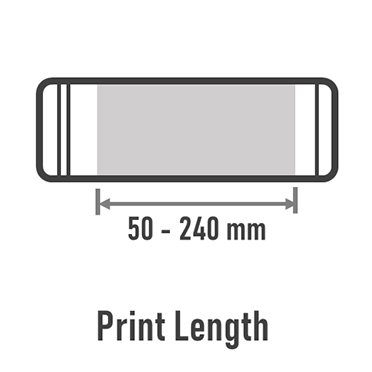

 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Print Length 50-240mm |

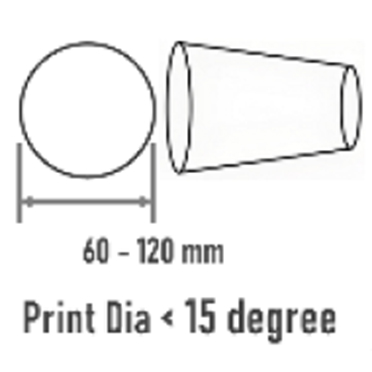

 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Print Diameter 60-120mm, Max. 15-Degree |

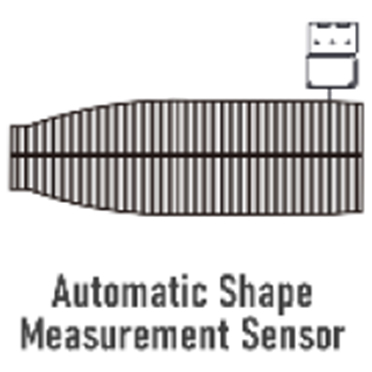

 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Automatic Shape Measurement Sensor |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Negative Pressure, Ink Supply System |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series White Ink Circulation |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Auto Purging Wipping & Capping System |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Linear Drive, Servo Motor Controlled |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Automatic Print Head Protection |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Z-Axis Height Control |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series RIP FlexiPRINT RIP Software |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series High Productivity |

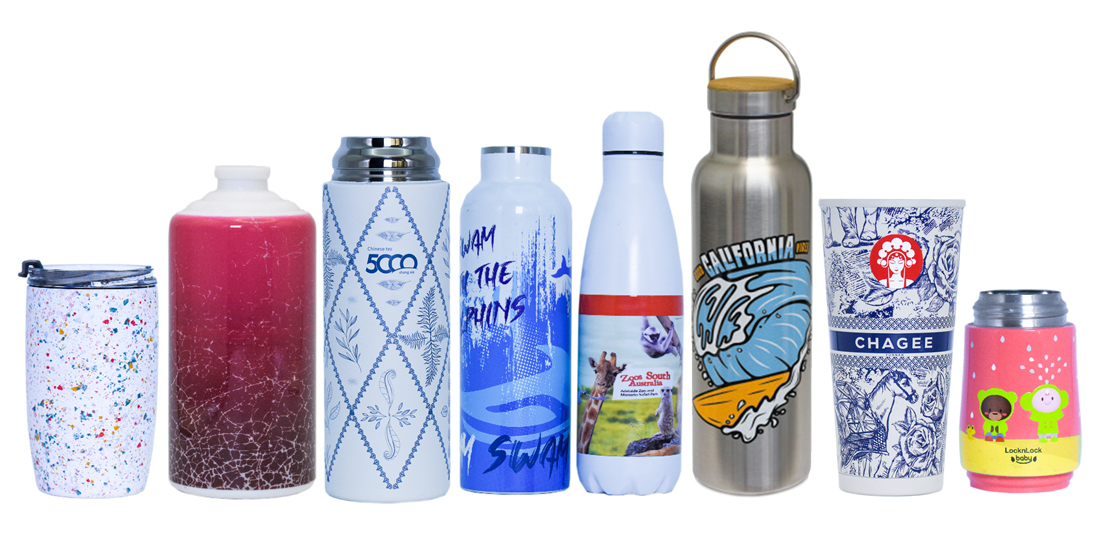

 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Digital Inkjet Printed Samples |
Applications: Stainless Steel Tumblers Plastic Cups Sports Bottles Glassware ltems Aluminum Cans Metal Cups |
| Features and Advantages | ||
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series High Performance RICOH Gen6 Print Heads |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Perfect 360° Seamless Spinning Print |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series High Drop Printing on Irregular Surface |
| The EPSON I1600-U1 print head provides good performance and stability to meet the production requirements of high resolution, durability, and fast printing, achieving high quality and efficient spiral printing. | The Spiral Printing Pass Method and best print head technology ensure to deliver ink droplets precisely along the surface while it is spinning at a high rate, and 360° full-coverage printing without gaps and overlaps. |
The EPSON I1600-U1 print head delivers ink ejection of up to 4 colors realize with 600 dpi/color high-density resolution and supports multiple grayscale levels, ensuring exceptional print precision. |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series 6 Color Configuration W.KC.MY.LcLm.V |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Professional RIP Printer Control Software |

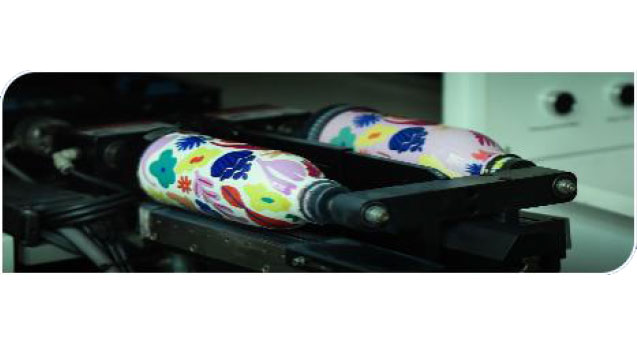

 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Adjustable Angled Tooling Fixture |
| Color Configuration extends the customary four color CMYK process by adding Lc and Lm Lc and Lm inks well present smooth gradations and light tones without graininess. Six-Color Configuration easily outputs accurate, vivid, and consistent colors. | FlexiPRINT is a satisfied solution with a powerful color management engine for image editing, calibration and print profiling. Printer Control Software has a user-friendly interface and is straight forward to use, offering advanced technology for image processing. |
The ECO-6 is equipped with dual operation stations that can print and cure simultaneously, improving production efficiency. The two tooling fixtures can be tilted max. 15 degree according to the shape of the product for taper printing. |

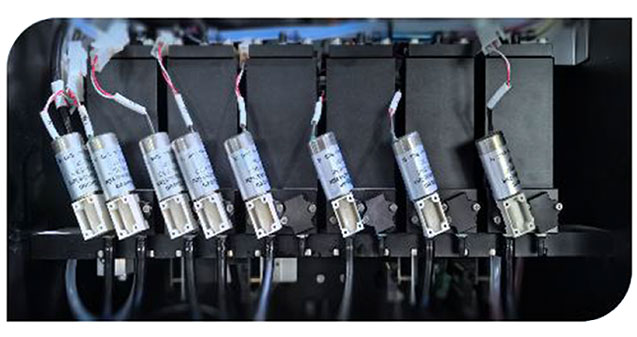

 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Negative Pressure Ink Supply System |
 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Print Head Maintenance System |

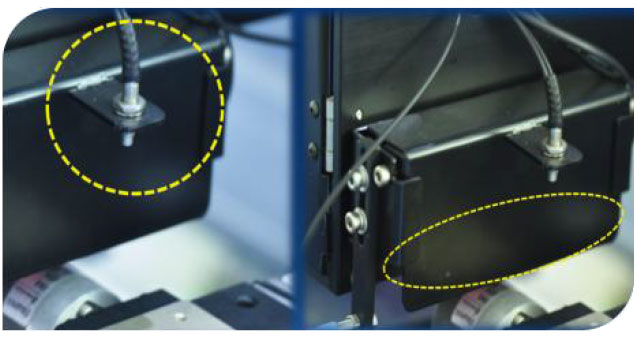

 Cylinder UV Digital Inkjet Printer ECO-6 Epson I1600 Series Automatci Print Head Protection System |
| The system creates a low-pressure environment within the ink cartridge, facilitating consistent ink flow and distribution for accurate and uniform printing. | Driven by motor, the system allows automatic wiping, and accurately controls the position of capping, intelligently protect the print head and prolongs life. | System comes with a UV-sensitive sensor and a collision prevention sensor. System can immediately stops the movement of the carriage in case of the emergency situations, effectively ensuring the safety of print heads. |
| Technical Specification | ||
| ITEM | ECO-6 | LED UV Curing System All Servo Motor Driven System Embossed Printing Automatic Z-Axis Height Detecting White Ink Circulation System Easy Fixture Changeover, Easy Image Set Up PLC Control, Touch Screen Display |
| Print Head | Epson I1600 Industrial Piezo Print Head x 6 | |
| Workstation | Dual Workstations | |
| Print Technology | Piezoelectric Inkjet, Variable Dot Printing, Grayscale Technology | |
| Droplet Volume | 3.8-12pl Variable | |
| Ink Configuration | W+CMYK+V | |
| Ink Type | Rigid UV Curable Ink | |
| Ink Cartridge Capacity | 1.5 Liters | |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply | |
| Print Resolution | 600 x 2,400 dpi max | |
| Print Speed | Up to 10 pcs/min | |
| Product Diameter | 45-120 mm | |
| Print Length | 50-240 mm | |
| Taper Adjustable Angle | 15 Degree Max | |
| RIP Software | FlexiPRINT | |
| Image Format | BMP, JPG/JPEG, TIFF, PDF, EPS, PNG, SVG | |
| Connectivity | Gigabit Ethernet Interface | |
| UV Method | LED-UV Lamp with water cooling system, length 240 mm, 0-15 W/cm2 | |
| Power Supply | Single-Phase AC 110/220V, 50/60Hz | |
| Operational Environment | Temperature: 18-30℃. Humidity: 40-80% Rh (Non condensing) | |
| Dimensions (WxDxH) | 1,825 x 1,060 x 1,930 mm | |
| Approximate Weight Crated | 900 kgs | |
