RPM - Cylinder UV Digital Inkjet Printer, Model ECO Plus-5

WeChat: +86.13328318872

RPM promotes top-grade Cylinder UV Digital Inkjet Printer ECO Plus-5 made in China, such as Cylinder UV Digital Inkjet Printer, Single Pass UV Digital Inkjet Printer, Rotary Tube UV Digital Inkjet Printer, AI Scanning UV Conveyor Digital Inkjet Printer, plus 2-8 Colors Rotary Screen Printing & Hot Stamping Machine, etc.

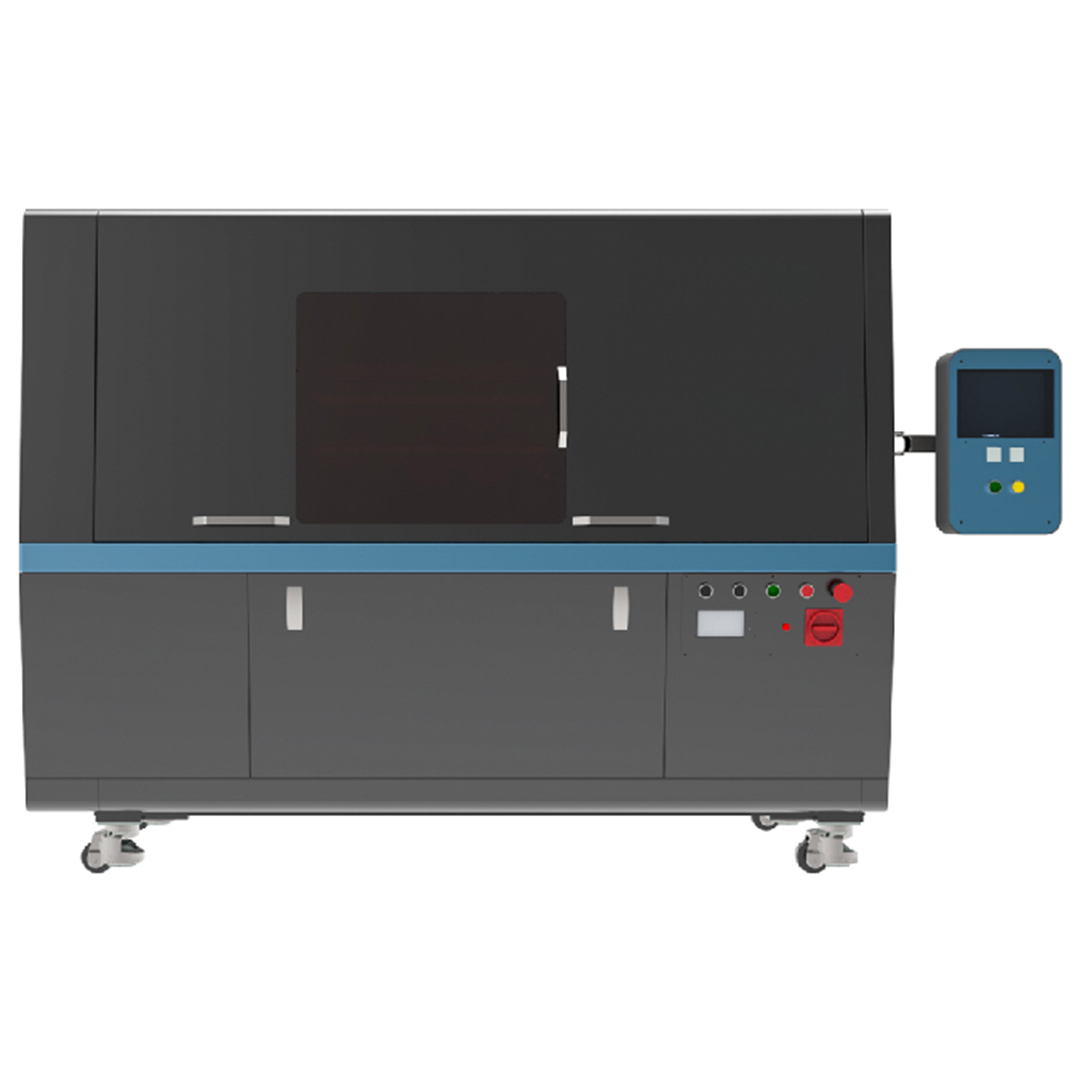

Cylinder UV Digital Inkjet Printer
ECO Plus-5 Ricoh Gen6 Series

Cylinder & Tapered Object Printing
Full Six-Colour Configuration CMKYLcLm
Part Diameter 65-180 mm
Print Length 50-240 mm
Adjustable Angled Tooling Fixture
2-15 mm High-Drop Printing
Servo-Driven Operation
Magnetic Levitation Linear Motor

Cylinder UV Digital Inkjet Printer, ECO-6 Epson I1600 Series, 360 Degrees Seamless Printing

Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series CMYK.WV.LcLm	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Ricoh G6 Print Head	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series 5-15pl Variable Droplet
Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series HI-RES High Definition	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Cylinder & Tapered, Object Printing	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Print Length 50-240mm
Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Print Diameter 60-120mm, Max. 15-Degree	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series High Dropping 2-15mm	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Automatic Shape Measurement Sensor
Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Negative Pressure, Ink Supply System	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series White Ink Circulation	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Auto Purging Wipping & Capping System
Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Linear Drive, Servo Motor Controlled	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Mist Extraction	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Automatic Print Head Protection
Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Z-Axis Height Control	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series RIP FlexiPRINT RIP Software	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series High Productivity

Cylinder UV Digital Inkjet Printer
ECO Plus-5 Ricoh Gen6 Series

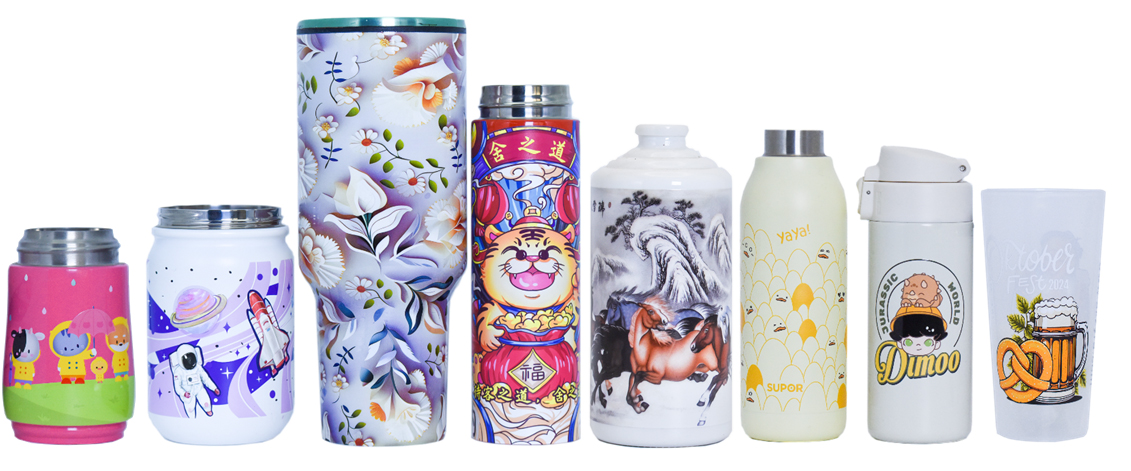

Digital Inkjet Printed Samples

Applications:
Stainless Steel Tumblers
Plastic Cups
Sports Bottles
Glassware ltems
Aluminum Cans
Metal Cups

Features and Advantages

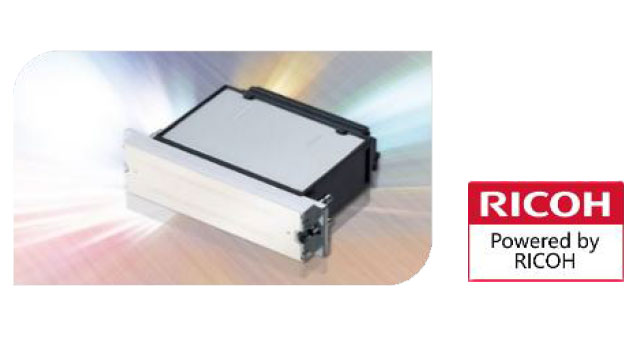

Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series High Performance RICOH Gen6 Print Heads	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Perfect 360 Degrees Seamless Spinning Print	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series High Drop Printing on Irregular Surface
A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.	The Spiral Printing Pass Method and best print head technology ensure to deliver ink droplets precisely along the surface while it is spinning at a high rate, and 360° full-coverage printing without gaps and overlaps.	Support 2-15 mm high-drop printing on irregular or uneven surfaces. The sensor automatically measures the product shape, achieves precise positioning.

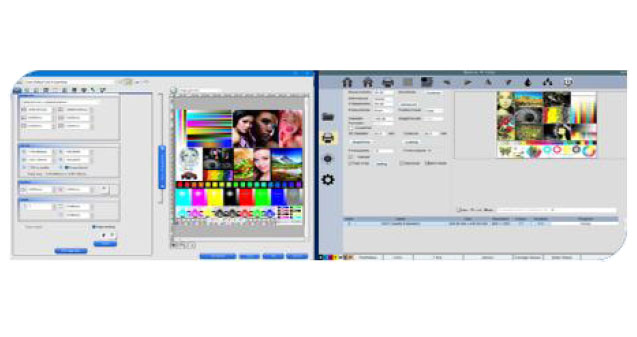

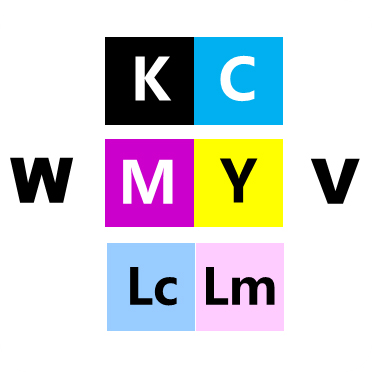

Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series 6 Color Configuration W.KC.MY.LcLm.V	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Professional RIP Printer Control Software	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Adjustable Angled Tooling Fixture

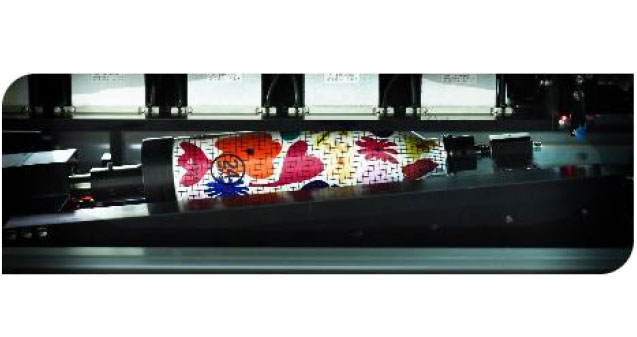

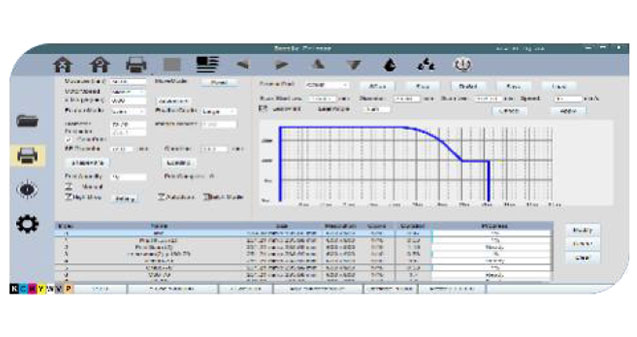

Color Configuration extends the customary four color CMYK process by adding Lc and Lm. Lc and Lm inks well present smooth gradations and light tones without graininess. Six-Color Configuration easily outputs accurate, vivid, and consistent colors.	FlexiPRINT is a satisfied solution with a powerful color management engine for image editing, calibration and print profiling. Printer Control Software has a user-friendly interface and is straight forward to use, offering advanced technology for image processing.	Equipped with the angle adjustment device, the tooling fixture can be tilted 15 degree max according to the shape of the product for taper printing.

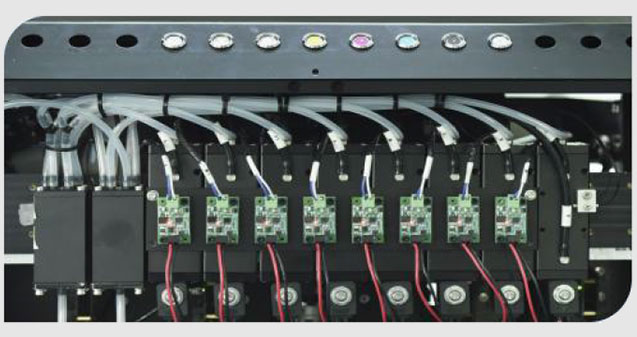

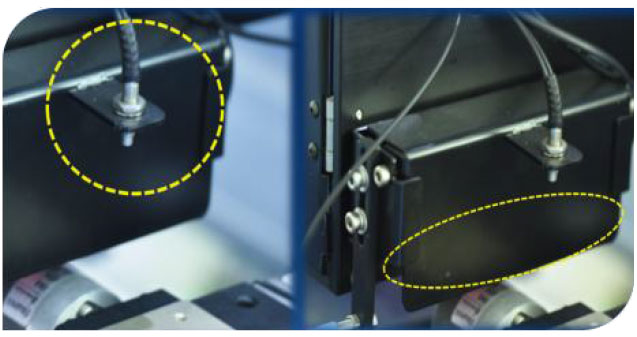

Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Negative Pressure Ink Supply System	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Print Head Maintenance System	Cylinder UV Digital Inkjet Printer ECO Plus-5 Ricoh Gen6 Series Automatci Print Head Protection System

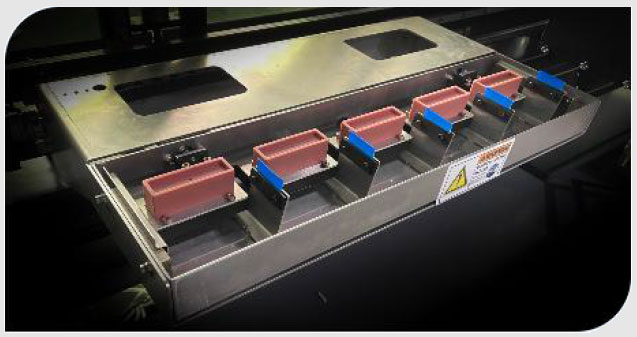

The system creates a low-pressure environment within the ink cartridge, facilitating consistent ink flow and distribution for accurate and uniform printing.	Driven by motor, the system allows automatic wiping, and accurately controls the position of capping, intelligently protect the print head and prolongs life.	System comes with a UV-sensitive sensor and a collision prevention sensor. System can immediately stops the movement of the carriage in case of the emergency situations, effectively ensuring the safety of print heads.

Technical Specification
ITEM	ECO Plus-5	LED UV Curing System Water-cooled LED UV system with high efficiency and low energy consumption. Synchronized printing ond curing operation. All Servo Motor Driven System High performance of industrial servo motors provide excellent control of the movement of the shuttle. Ink Mist Extraction Device The Ink Mist Extraction Device optimizes the environment and guarantees a haze-free print image. Embossed Printing Embossed printing builds up raised layers of ink for overall or only appealing parts on tapered or cylindrical objects. Automatic Z-Axis Height Detecting The smart height senor easily detects and gauges the distance between the loaded object and the print heads, and provides great help for setting the proper print height. White Ink Circulation System By incorporating a small agitation motor that continually cycles, no sediment can occur in the white ink bottle. Easy Fixture Changeover, Easy Image Set Up
Print Head	Ricoh MH5320 (GEN6) Industrial Piezo Print Head x 5
Print Technology	Piezoelectric Inkjet, Variable Dot Printing, Grayscale Technology
Droplet Volume	5-15pl Variable
Ink Configuration	W + CK + MY + LcLm +V
Ink Type	Rigid UV Curable Ink
Ink Cartridge Capacity	1.5 Liters
Ink Supply System	Negative Pressure System (NPS) with Automatic Ink Supply
Print Resolution	600 x 900 dpi (3 pass); 600 x 1,200 dpi (4 pass); 600 x 1,800 dpi (6 pass)
Print Speed	Up to 5 pcs/min
Part Diameter	60 - 120 mm
Print Length	50 - 240 mm (Upgrade 300 mm)
Taper Adjustable Angle	Max. 15 degree
High Dropping Range	2-15 mm
RIP Software	FlexiPRINT
Image Format	BMP, JPG/JPEG, TIFF, PDF, EPS, PNG, SVG
Connectivity	Gigabit Ethernet Interface
UV Method	LED-UV Lamp with water cooling system, length 240 mm, 0-15W/cm2
Power Supply	Single-phase AC110/220V, 50/60Hz
Operational Environment	Temperature: 18–300C. Humidity: 40–80% Rh (Non condensing)
Dimensions (W×D×H)	2,200 x 990 x 1,650 mm
Approximate Weight Crated	1050 kgs
