Digital Inkjet Printers
Made in China
| RPM promotes top-grade Single Pass UV Digital Inkjet Printer ULTRA-5 Riso CF3R Series made in China, such as Cylinder UV Digital Inkjet Printer, Single Pass UV Digital Inkjet Printer, Rotary Tube UV Digital Inkjet Printer, AI Scanning UV Conveyor Digital Inkjet Printer, plus 2-8 Colors Rotary Screen Printing & Hot Stamping Machine, etc. |

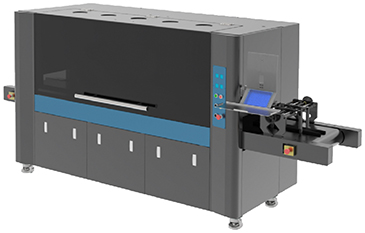

Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series |
 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series |
All Servo-Driven Independent Carriage Single Pass Full Color Inkjet Technology Short & Medium Run Printing Ink Recirculating Type Inkjet Head CF3R Inline Plasma Pretreatment UV LED Curing for Pinning & Full Cure Personalized and Custom Applications |
 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series Digital Inkjet Printed Samples |
Applications: Suitable for plastic, glass, acrylic, wood, metal material Great fit for various packaging products & promotional items printing Work on metal signage, paper bags, paper box, phone case, leather, KT boards, toys, egg box, keychains, cards, bottle caps, metal badge, envelops, USB flash drive, power bank, small mirror, lipstick tubes, cosmetics bottles, eye shadow boxes, etc. |
| Features and Advantages | ||

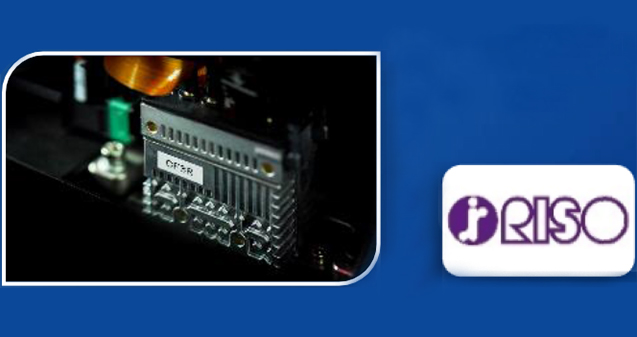

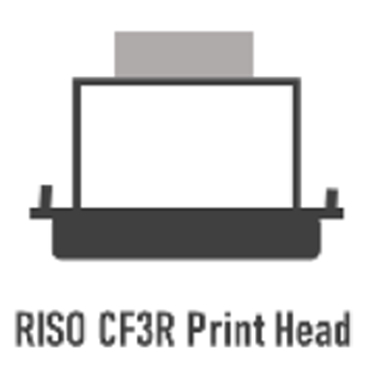

 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series High Performance RISO CF3R Print Heads |

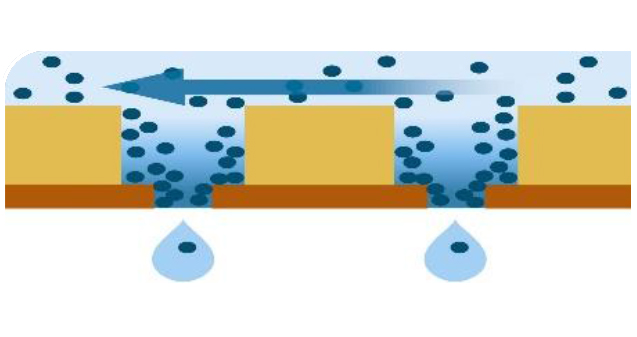

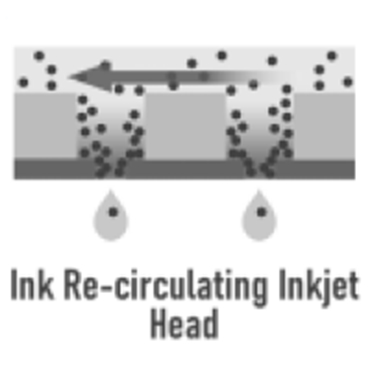

 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series Through-Channel Ink Recirculation System |

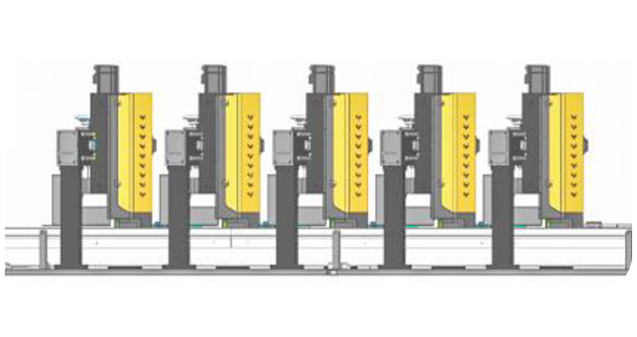

 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series All Servo Driven Independent Carriage |
| The CF3R print head offers 600 nozzles per inch (2 rows of 300) and small drop sizes, resulting in excellent print quality and smooth greyscales that satisfy even the most demanding customer requirements. |
Through-channel Ink Recirculation System, combined with side-shooter architecture guarantees excellent jetting performance and accuracy - air bubbles, drop deflection through sedimentation, and nozzle blockages are eliminated. |
All print heads can be adjusted in the same horizontal position by precisely moving each carriage up or down. Y-axis servo control for easy adjustment for each carriage based on product printing position. |

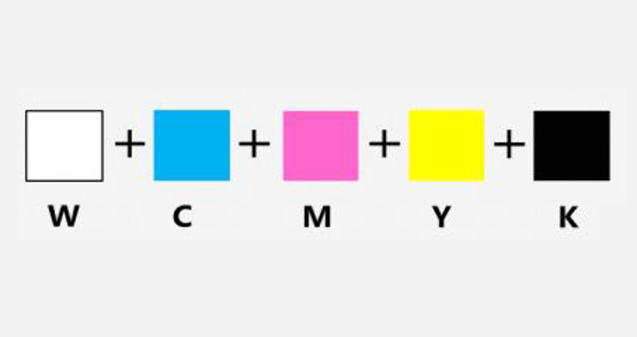

 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series Single Pass Full Color Inkjet Technology |

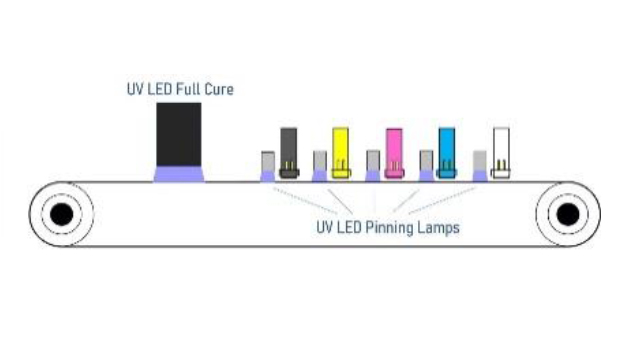

 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series UV LED Curing for Pinning & Full Cure |

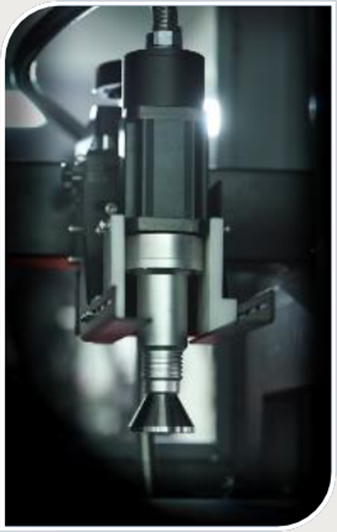

 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series Inline Plasma Pretreatment |
| Continuous multi-color printing in single pass. High quality CMYK images using grayscale technology. Ability to print up to 54 mm wide with no restrictions on length. Width of print can be increased by additional print heads being incorporated expanding print parameters by 54 mm. |
A UV LED light source with is mounted directly behind each print head. While pinning stops the drop from spreading, it leaves the ink flexible and soft enough for proper inter-coat adhesion to other ink droplets and for further handling. | The inline plasma pretreatment individually configured to match customer requirements, enabling the plasma process to be applied fully automatically and effectively pretreats the surface of substrates to improve the adhesion of inks. |

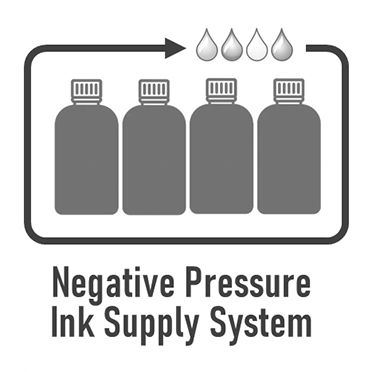

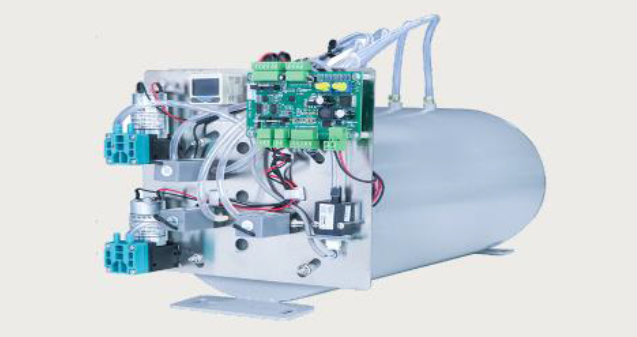

 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series Negative Pressure Ink Supply System |

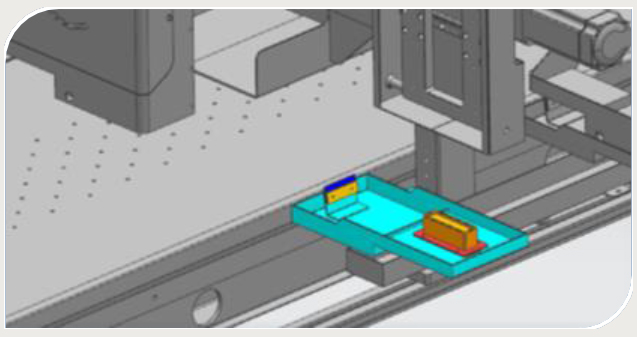

 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series Print Head Maintenance System |
 Single Pass UV Digital Inkjet Printer ULTRA 5 Riso CF3R Series Automatic Print Head Protection System |
| The system creates a low-pressure environment within the ink cartridge, facilitating consistent ink flow and distribution for accurate and uniform printing. | The automatic loading and unloading system greatly improves efficiency and saves manpower. | Each print head carriage is equipped with a smart collision prevention sensor. The automatic print head protection system can immediately stops the movement of the carriage in case of the emergency situations, effectively ensuring the safety of print heads. |
| Technical Specification | ||

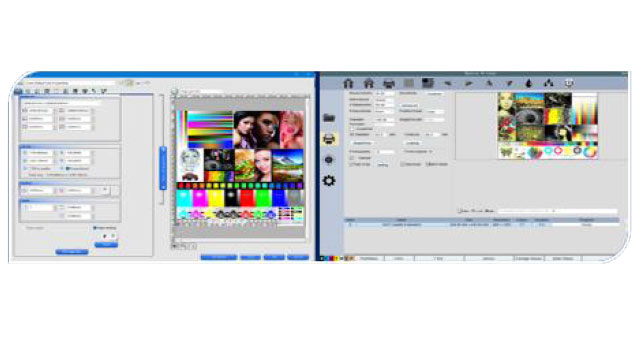

| ITEM | ULTRA-5 |  Professional RIP & Printer Control Software FlexiPRINT is a satisfied solution with a powerful color management engine for image editing, calibration and print profiling. Printer Control Software has a user-friendly interface and is straight forward to use, offering advanced technology for image processing. Z-Axis Servo Control for Height Adjustment Z-axis servo control for height adjustment for eachstation based on product height, and provides great helpfor setting the proper print height. Printing infrared Sensor Printing Infrared sensor helps to detect and locateincoming objects, and print at an accurate locationeasily. White Ink Circulation System By incorporating a small agitation motor that continuallycycles, no sediment can occur in the white ink bottle. Servo-Driven Conveyor Feed System PLC Control / Touch Screen Display |
| Print Head | RISO CF3R Industrial Piezo Print Head x 5 | |
| Print Technology | Piezoelectric Inkjet, Variable Dot Printing, Grayscale Technology | |
| Droplet Volume | 3-20pl Variable | |
| Ink Configuration | W + C + M + Y + K | |
| Ink Type | UV Curable Ink | |
| Ink Cartridge Capacity | 3 Liters | |
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply | |
| Print Resolution | 600 x 600 dpi | |
| Print Speed | Up to 30m/min | |
| Standard Print Width | 54 mm scalable to custom width | |
| Maximum Object Length | No Limitations | |
| Maximum Object Height | 100 mm | |

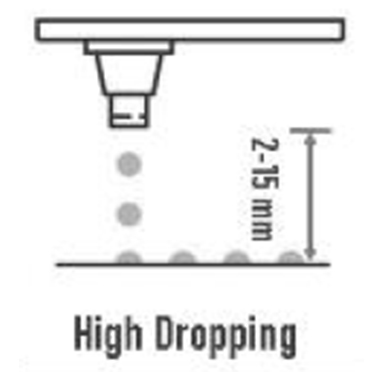

| High Dropping Range | 2-15 mm | |
| RIP Software | FlexiPRINT | |
| Image Format | BMP, JPG/JPEG, TIFF, PDF, EPS, PNG, SVG | |
| Connectivity | Gigabit Ethernet Interface | |
| UV Method | UV-LED Pinning Lamps with air cooling system UV-LED Full Cure with water cooling system |
|
| Conveyor Width | 500 mm | |
| Power Supply | Single-phase, AC110/220V, 50/60Hz | |
| Operational Environment | Temperature: 18-30℃, Humidity: 40-80% Rh (Non condensing) | |
| Dimensions (WxDxH) | 3,435x1,400x1,650 mm | |
| Approximate Weight Crated | 900 kgs | |
