| RPM promotes top-grade AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12, Ricoh Gen6 Series made in China, and others digital inkjet printers, such as Rotary Tube UV Digital Inkjet Printer, Cylinder UV Digital Inkjet Printer, Single Pass UV Digital Inkjet Printer, plus 2-8 Colors Rotary Screen Printing & Hot Stamping Machine, etc. |
AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series |
 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 Ricoh Gen6 Series |
High-Precision Visual Positioning System Easy Loading - No Need any Fixture or Tooling Print Width 600 mm Unlimited Printing Length Flat or Slightly Curved ltems Maximum Product Height 130 mm Automatic Product Height Sensor System Rapid Mass Production |

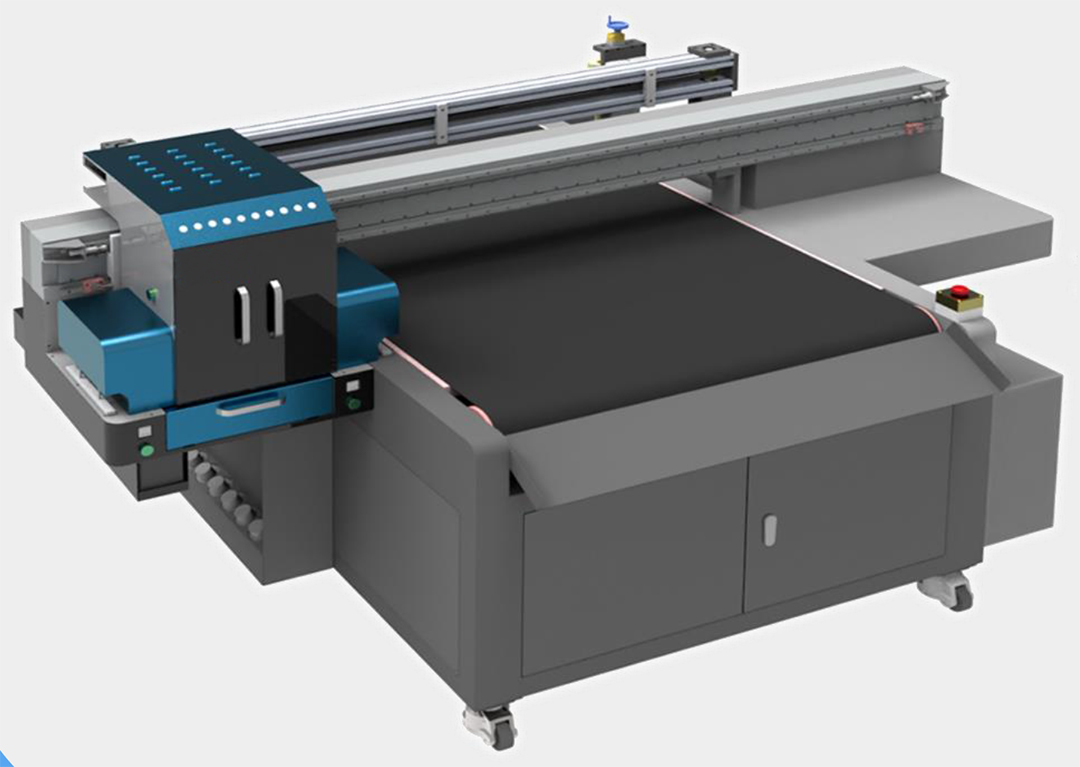

 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-12 Ricoh Gen6 Series |
High-Precision Visual Positioning System Easy Loading - No Need any Fixture or Tooling Print Width 1,200 mm Unlimited Printing Length Flat or Slightly Curved ltems Maximum Product Height 150 mm Automatic Product Height Sensor System Rapid Mass Production |
 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series Digital Inkjet Printed Samples |
Applications: Suitable for plastic, glass, acrylic, wood, metal material Great fit for various packaging products & promotional items printing Work on metal signage, paper bags, paper box, phone case, leather, KT boards, toys, egg box, keychains, cards, bottle caps, metal badge, envelops, USB flash drive, power bank, small mirror, lipstick tubes, cosmetics bottles, eye shadow boxes, etc. |
| Features and Advantages | ||
 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series High Performance RICOH Gen6 Print Heads |

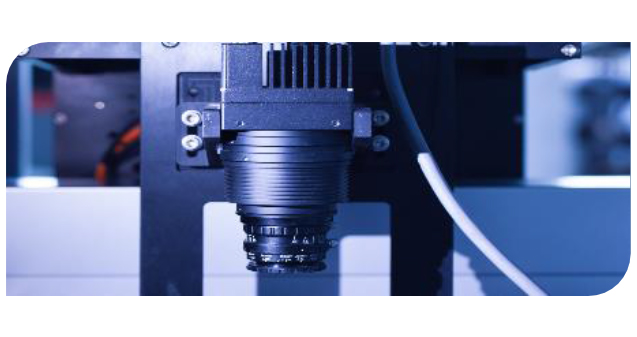

 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series High-Precision Visual Positioning System |

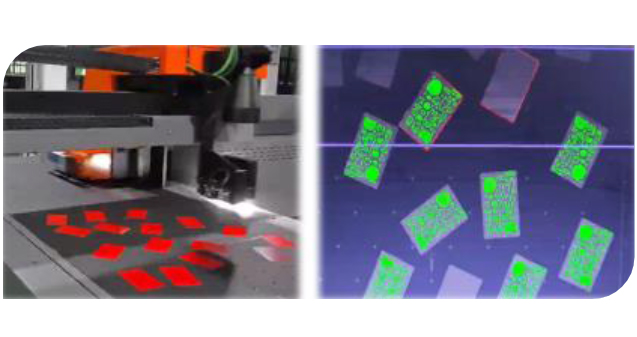

 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series Rapid Mass Production |
| A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity. |
A high-precision CIS visual positioning and large-scale graphic visual recognition system with max resolution 1,200dpi can scan the product images with 1:1 output and no distortion. |
The visual positioning system eliminates the need for printing positioning frames and lines. With one click navigation and template matching, it can achieve 360 ° arbitrary placement of media. |

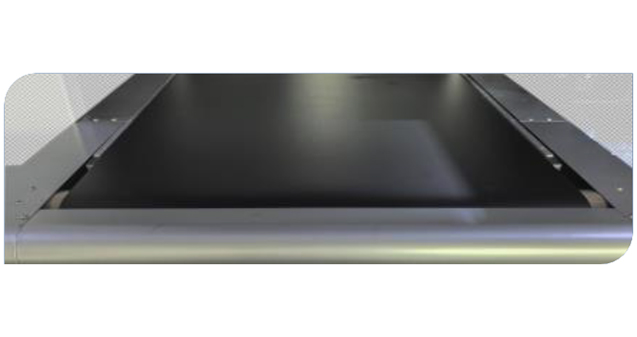

 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series Servo-Driven Conveyor Feed System |
 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series Professional RIP & Printer Control Software |

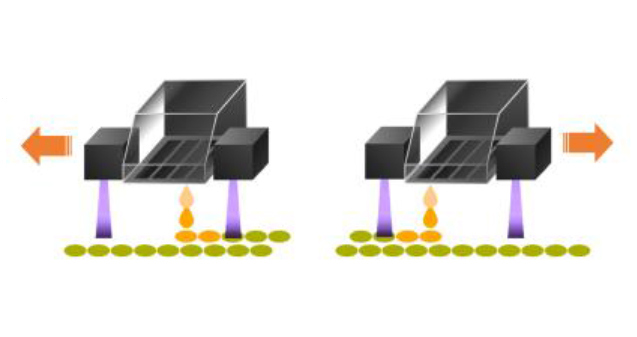

 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series Dual Energy-Efficient UV-LED Lamps |
| Continuous multi-color printing in single pass. High quality CMYK images using grayscale technology. Ability to print up to 54 mm wide with no restrictions on length. Width of print can be increased by additional print heads being incorporated expanding print parameters by 54 mm. |
RIIN is a satisfied solution with a powerful color management engine for image editing, calibration and print profiling. Printer Control Software has a user-friendly interface and is straight forward to use, offering advanced technology for image processing. | UNIVISUAL-6 enables bi-directional printing with UV-LED lamps on both sides of the print head carriage. Two UV-LED lamps, one of which moves, ensure instant curing of inks. |

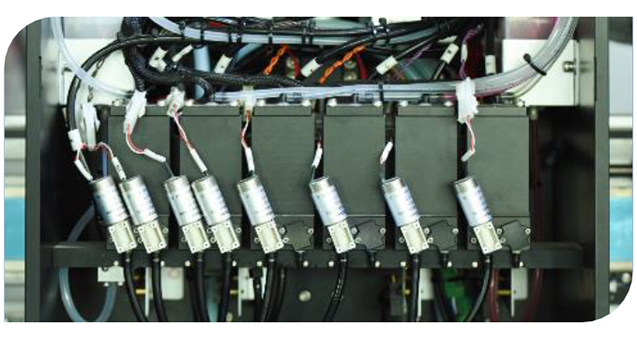

 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series Negative Pressure Ink Supply System |

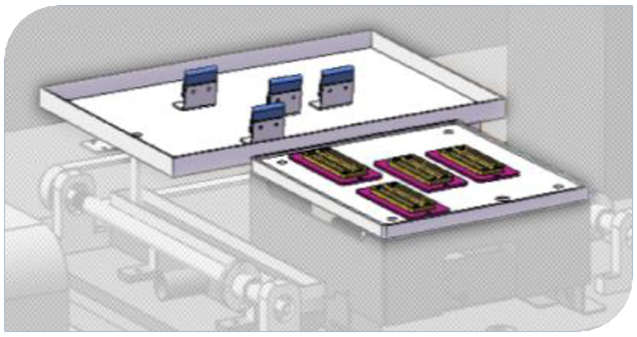

 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series Print Head Maintenance System |

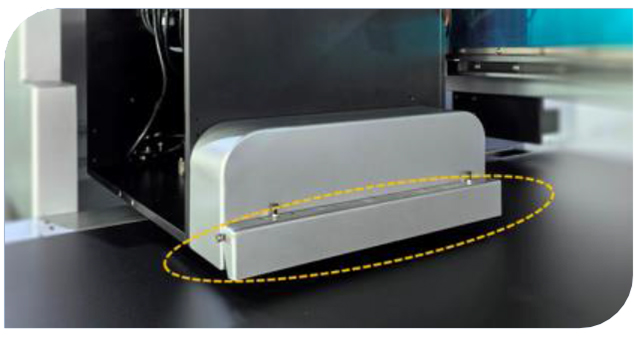

 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series Automatic Print Head Protection System |
| The system creates a low-pressure environment within the ink cartridge, facilitating consistent ink flow and distribution for accurate and uniform printing. | Driven by motor, the system allows automatic wiping, and accurately controls the position of capping, intelligently protect the print head and prolongs life. | System comes with a collision prevention sensor. System can immediately stops the movement of the carriage in case of the emergency situations, effectively ensuring the safety of print heads. |

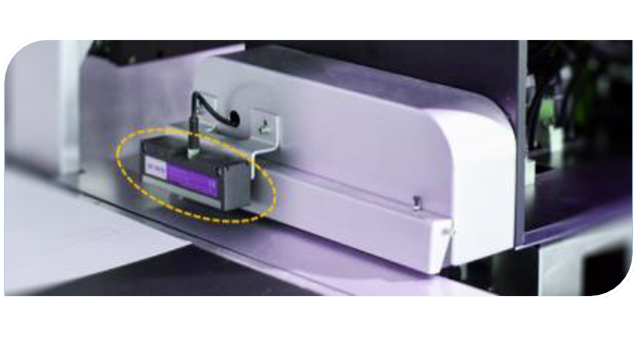

 AI Scanning UV Conveyor Digital Inkjet Printer UNIVISUAL-6 or UNIVISUAL-12 Ricoh Gen6 Series Static Eliminator |
||
| UNIVISUAL-6 is equipped with a static eliminator, which can eliminate static efficiently and reliably from printer and the media. Guarantee the high precision output. | ||
| Technical Specification | |||
| ITEM | UNIVISUAL-6 | UNIVISUAL-12 | Automatic Media Height Sensor System Industrial Servo Motors Magnetic Levitation Linear Motor White Ink Circulation System Conveyor Belt Deviation Correction |
| Print Head | Ricoh MH5320 (GEN6) Industrial Piezo Print Head x 4 | ||
| Print Technology | Piezoelectric Inkjet, Variable Dot Printing, Grayscale Technology | ||
| Droplet Volume | 5-15pl Variable | ||
| Ink Configuration | W + KC + MY +V | ||
| Ink Type | UV Curable Ink | ||
| Ink Cartridge Capacity | 1.5 Liters | ||
| Ink Supply System | Negative Pressure System (NPS) with Automatic Ink Supply | ||
| Print Resolution | 720x900dpi(6 pass); 720x1,200dpi(8 pass); 720x1,800dpi(12 pass) | ||
| Print Speed | Up to 19.25 sqm/h | Up to 36 sqm/h | |
| Position System | High Definition CIS Visual Positioning System | ||
| Print Area (W x D) | 600 mm x Unlimited | ||
| Camera Resolution | 1,200 dpi | ||
| Camera Scanning Speed | 1,200 mm/s, max to 1,500 mm/s | ||
| Camera Scanning Accuracy | ±0.05 mm | ||
| Maximum Media Thickness | 130 mm | 150 mm | |
| High Dropping Range | 2-8 mm | ||
| RIP Software | RIIN | ||
| Image Format | BMP, JPG, TIF, PDF, DXF, EPS, AI, PNG, PSD, PLT | ||
| Connectivity | Gigabit Ethernet Interface | ||
| UV Method | Dual LED-UV lamps with water cooling system, 1.15 kw in total | ||
| Power Supply | Single-phase AC 220V, 50/60 Hz, 6.5 kW | ||
| Operational Environment | Temperature: 18-30℃. Humidity: 40–80% Rh (Non Condensing) | ||
| Dimensions (W×D×H) | 2,470 x 2,050 x 1,830 mm | 3,380 x 2,100 x 1,500 mm | |
| Approximate Weight Crated | 700 kgs | 1,200 kgs | |
