RPM - 2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine, TURBO 2-8

WeChat: +86.13328318872

Automatic Rotary Screen Printer
Screen Printing Hot Stamping Machine
TURBO 2-8
Made in China

RPM promotes top-grade 2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8, and others digital inkjet printers, such as Rotary Tube UV Digital Inkjet Printer, Cylinder UV Digital Inkjet Printer, Single Pass UV Digital Inkjet Printer, AI Scanning UV Conveyor Digital Inkjet Printer, etc.

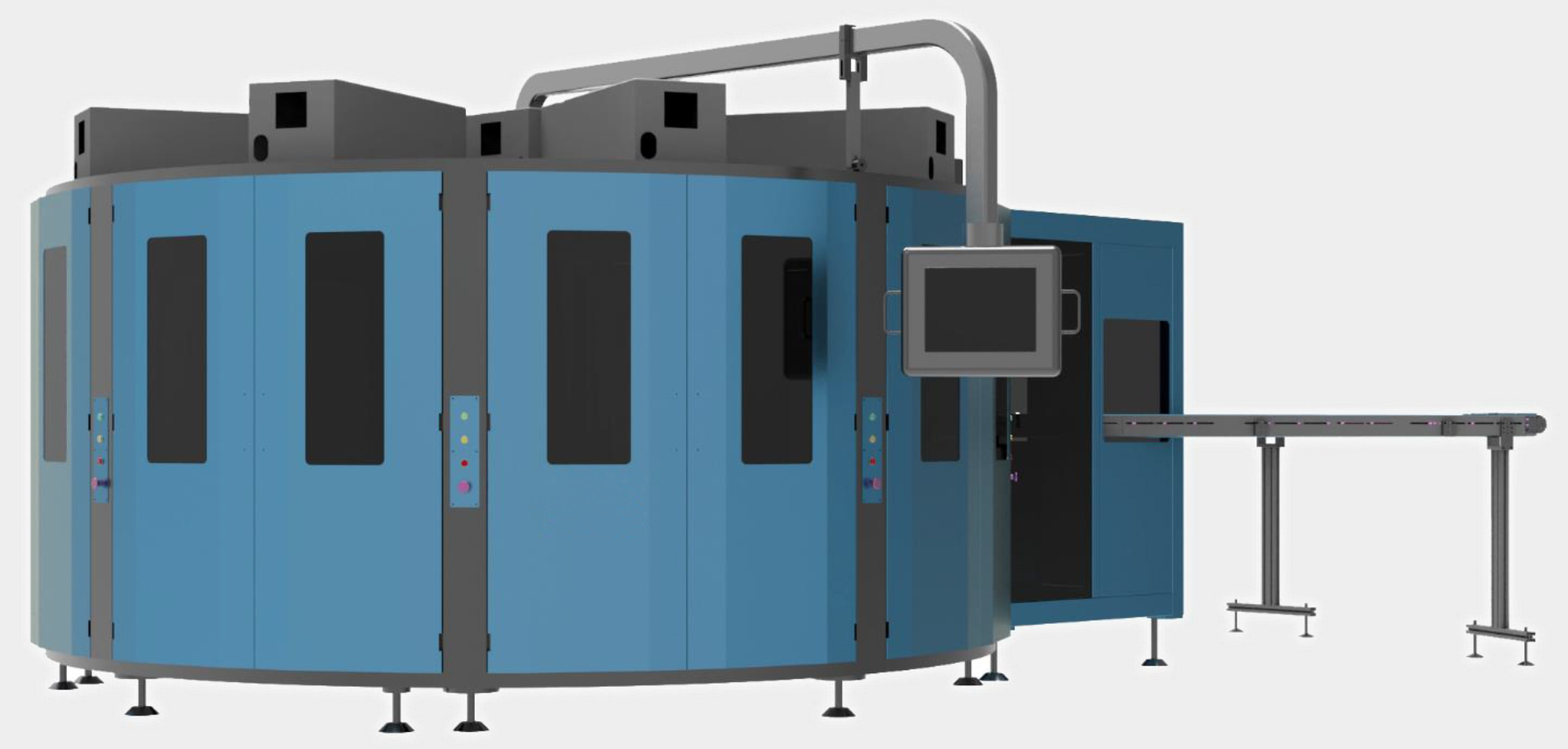

2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8

Automatic Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8

2-8 Colors Rotary Screen Printer
Screen Printing Hot Stamping Machine TURBO 2-8
Samples of Applications

Applications:

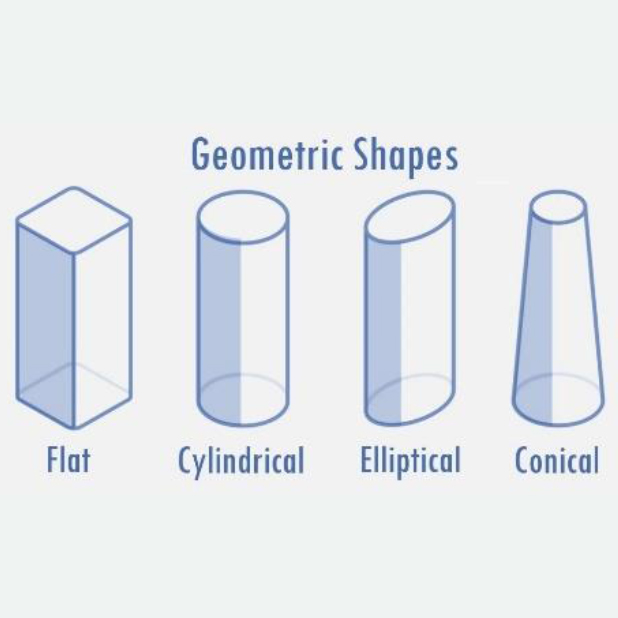

Square, cylindrical, elliptical, conical products
Bottles, jars, tubes, cups, etc.
Glass, plastic, metal, etc.

Features and Advantages

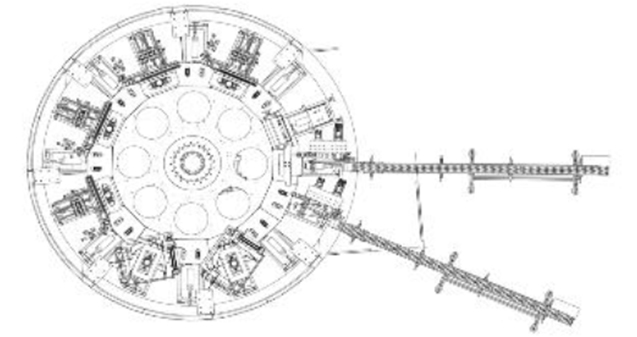

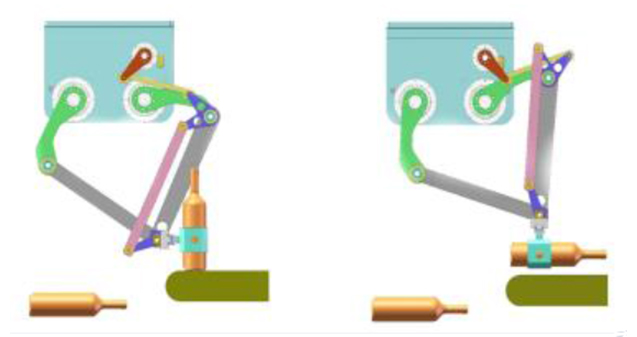

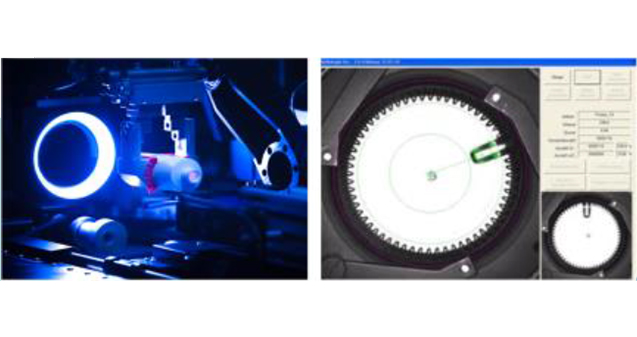

2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8, Servo Driven Rotary Table System	2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Universal Robot Handling System	2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Reliable Camera Pre Registration System
The screen-printing stations equipped with CNC Servo-Technology for all moving axis allow printing (3600) on any developable geometric shapes.	The Universal Robot Handling System for standing and lying object loading and unloading enables shortest change-over times.	To pre-register the object in the machine, the completely integrated solutions are available as well in option, based on bottom camera or linear body camera.

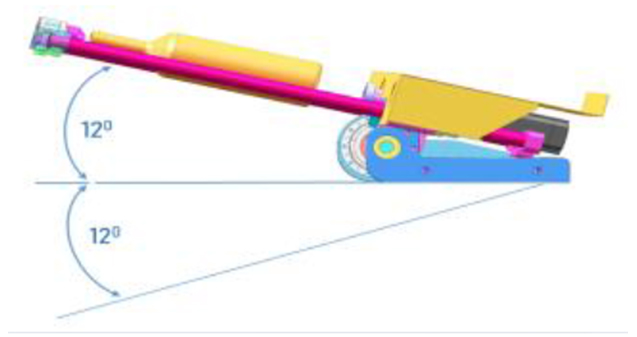

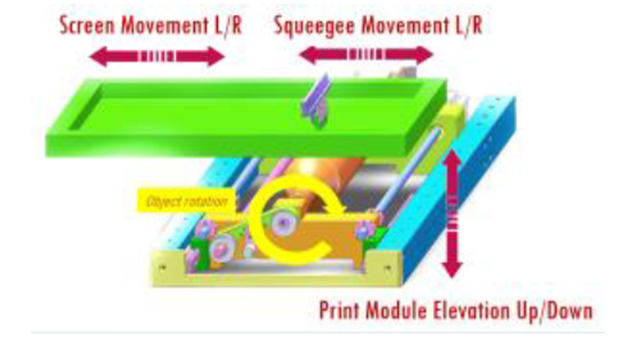

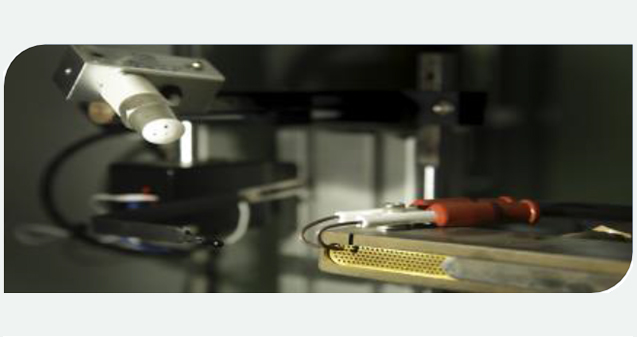

2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 CNC Servo Driven Print Modular	2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Auto Jigs Tilting System Optional	2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Auto Pre-Treatment Devices
The screen-printing stations equipped with CNC Servo-Technology for all moving axis allow printing (3600) on any developable geometric shapes.	Servo-driven Jigs Tilting System +/- 12 degree adjustable for conical printing (up to 30 degree, height 150 mm max)	Pre-treatment devices (electrostatic dust removal/ Flame/plasma/corona) can be integrated inside machine.

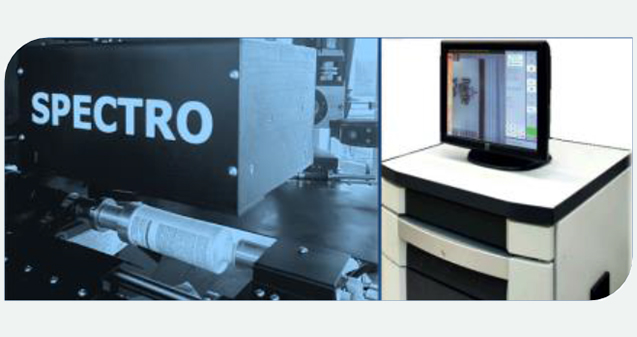

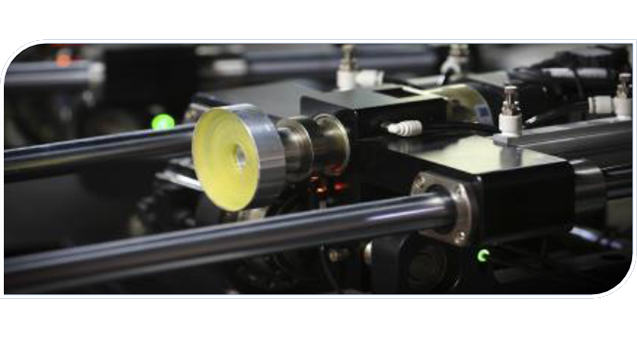

2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Optional Camera Inspection System	2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Dual Bar with Linear Rail Shaft	2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Servo Driven Nose Cone
With the high-precision Camera Inspection System, the decoration can be checked with regard to image completeness, register mismatches, scratches, smears, color deviations, etc.	Very solid and robust loading arm suitable for heavy duty bottles screen print and hot foil stamping.	Servo motor-driven nose cone and servo with gear box. Containers permanently held between chuck and nose cone "captured concept" enables enhanced registration and eliminates droppage.

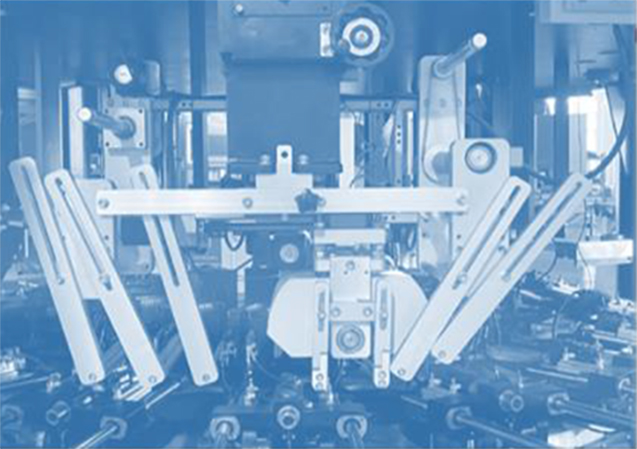

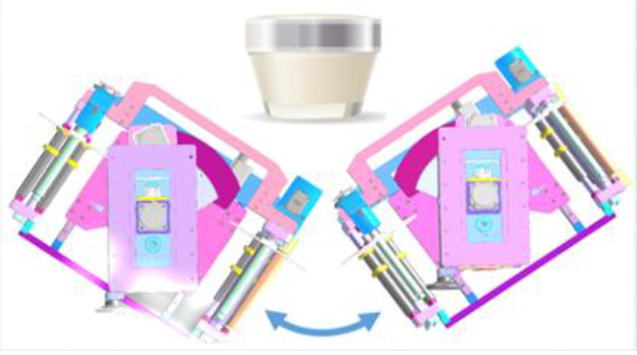

2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Hot Foil Stamping Module with Roller for Glass	2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Hot Stamping Module with Silicone Die for Plastics	2-8 Colors Rotary Screen Printer Screen Printing Hot Stamping Machine TURBO 2-8 Roller Stamping with Foil Swing System for Cone Shape
Servo driven roller stamping head up/down and left/right with CNC functioning. Pneumatic support under roller.	Servo motor controlled silicone die cliché can be moved in both vertical and horizontal directions.

Technical Specification
ITEM	TURBO 2-8	Air Inflation for Plastic Containers Device for inflating plastic containers which are notenough stiff to be decorated, complete with manometerand pressure requlator. Mandrels / Chucks with Vacuum Provides on option for those applications that cannot beheld by traditional methods. High Eficiency LED UV Curing System Air and water-cooled LED UV system with high efficiencyand low energy consumpfion. Electrode UV curing systemfrom Europe optional for last color. PLC Control /Touch Screen Display Control of various machinery or production processes andaccessory functions by a PlC. All parameters automaticsetting simply in touch screen. Touch screen with Wificonnection for remote control and future maintenance. Screen-Squeegee Heating System Optional Screen-Squeegee Heating System can be heatedelectrically. Therefore,it is well suited for printing withthermoplastic ink. Automatic Ejection System Optional An air cylinder pushes the bad printed objects (to be diverted) from the auto unloading conveyor to anadjacent removal conveyor. "No Product, No Printing" Safety Dperation with CE

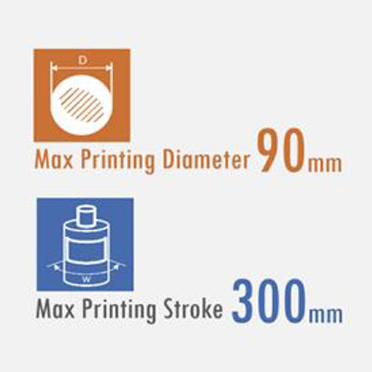

Max Printing Diameter	90mm for 360 degree print

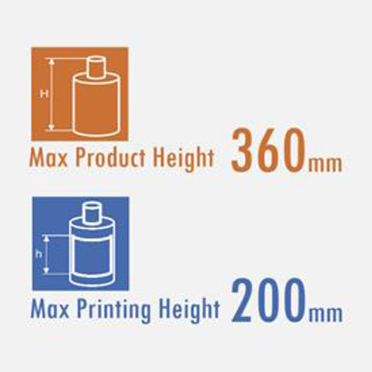

Max Product Height	360 mm
Max Printing Height	200 mm
Printing Stroke	300 mm
Max Output	60 pcs/min
UV Power	1.1 - 1.8 kW LED / 5kW Electrode
